IB Subwoofer (aka IB subs)

  Project Gallery and Links

Manifold Design Subs

Page 2 of 6

 Main Infinite Baffle Subwoofer F.A.Q Page

Note to IB owners with designs featured in the gallery. If there's a link to a website for your sub, please make sure it's current. If you change hosts, please email the new link to
infinitelybaffled at comcast dot net
___________________________________________________

Manifold Designs are on pages 1 and 2
Wall mounted speakers are on page 3
Unusual and Extreme Designs are on page 4
"Infamous" Designs are on page 5
Installs not discussed on the Cult forum 6

__________________________________________________________________________________________

Below is the ceiling outlet cover for Jerry McNutt's original IB. Manifold pics will be taken after repair of the pull down stairwell that was broken when placing the outlet box. The drivers are prototype DVC-12"s

__________________________________________________________________________________________

Jeff's attic mount 4 driver IB

White heating duct grill covers the IB outlet. Note this is centered over the RPTV.

__________________________________________________________________________________________

Kevin Umlauf's 4-Tempest wall mounted outlet box.

Although a little tricky to see, the IB throat is the large dark shape just above the floor, centered below the FPTV screen

Kevin was inventive with his driver mounting. These are clips designed for attaching table tops to aprons.

__________________________________________________________________________________________

This is ThomasW's 4 Shiva's "Mini-Me" basement mounted IB. This picture was taken while the IB was being attached to the floor joists

HERE is the URL for the web page with a detailed description and additional pictures

__________________________________________________________________________________________

George S' 4-15" MKII Titanic floor mounted IB

Here's a LINK to more pictures of George's install.

_________________________________________________________________________________________

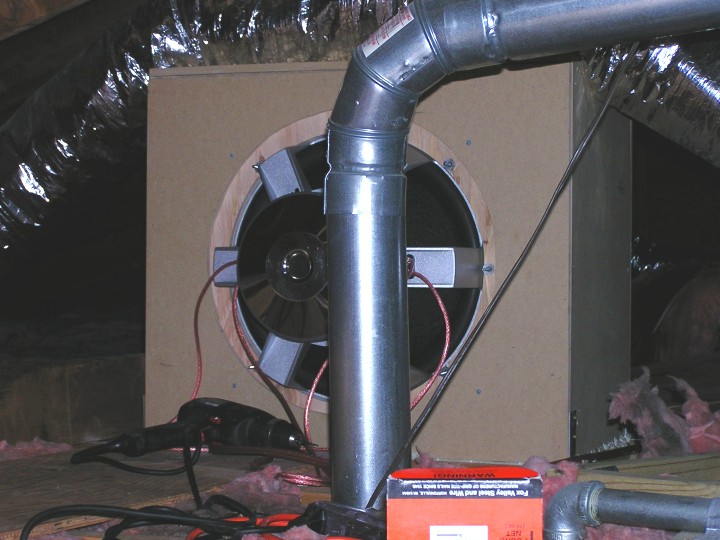

This is J. Lowe's dual Avalanche 18" manifold

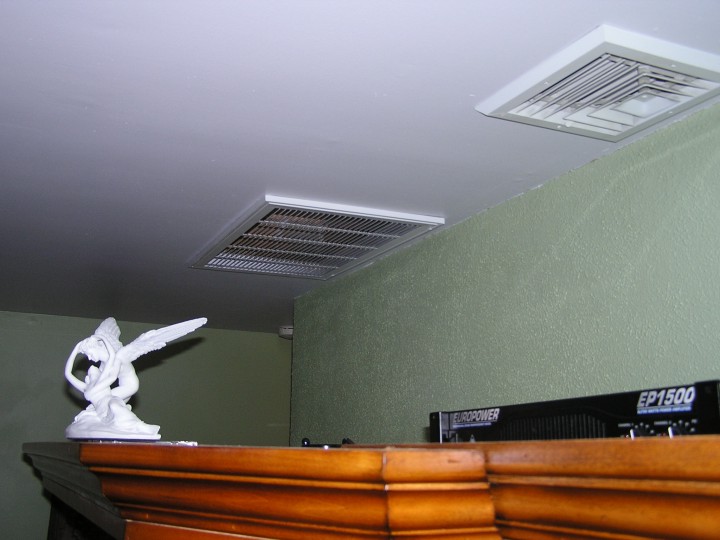

The larger metal grill is covering the IB outlet. The Behringer EP-1500 provides power for the IB

_________________________________________________________________________________________

Gary K's floor mounted 4 AE/Stryke IB15" manifold. Featuring an innovative use of
readily available materials for raising the manifold into place.

Grill cover for the outlet

_________________________________________________________________________________________

This is BrianC's 4 AE/Stryke IB15" manifold.

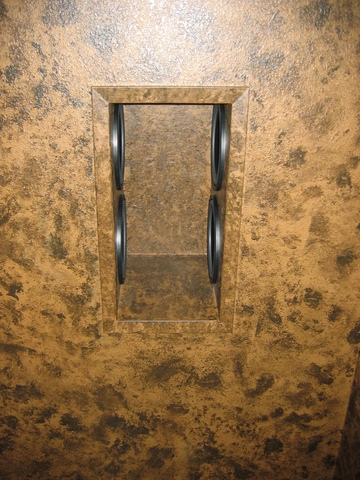

Below is the outlet into Brian's HT. The walls and ceiling of the HT have a faux finish. The same finish
was used for the exposed portions of the manifold. Obviously no grill or cover will be placed over the opening.

Brian has a photo gallery of the pictures he took during the construction and installation of his IB.
 A link to that gallery is available HERE.

_________________________________________________________________________________________

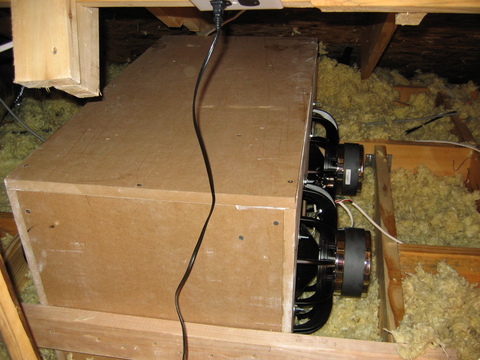

This is Ted W's dual Avalanche 15" IB.

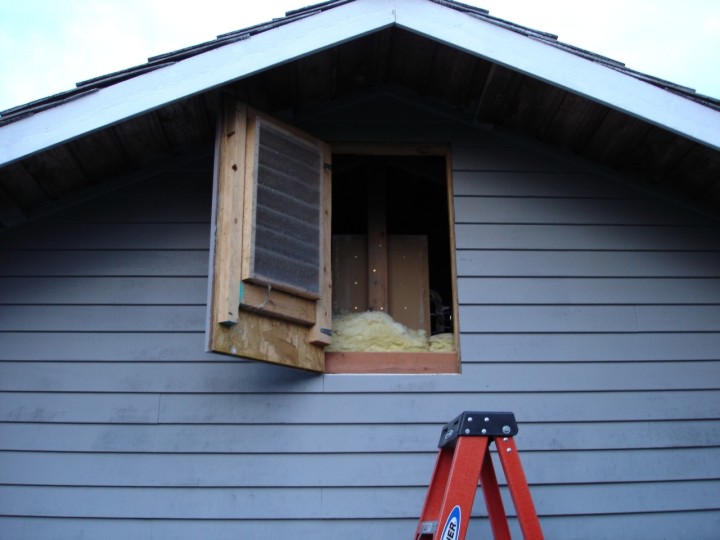

The first picture shows the manifold mounted in the attic as viewed through gable vent opening.

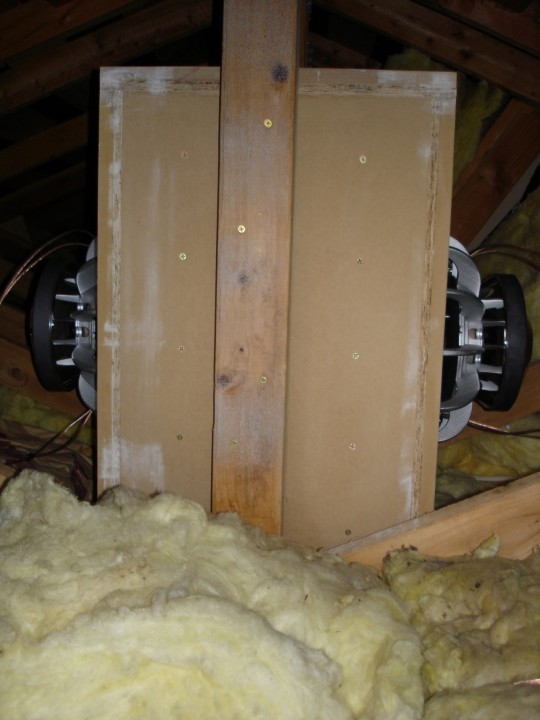

Here's a side view of the manifold

Below is the outlet in his listening room

_________________________________________________________________________________________

This is Mike Keith's 4-18" manifold

More pictures of Mike's design/build/install are available at the link below
http://kingdaddy.linaeum.com/IB%20Sub/

_________________________________________________________________________________________

Click HERE to go to page 3
