"Cult of the Infinitely Baffled"
IB Subwoofer (aka IB subs)- FAQ Pages

  Project Gallery and Links

Manifold Design Subs

Page 3 of 6

 Main Infinite Baffle Subwoofer F.A.Q Page

Note to IB owners with designs featured in the gallery. If there's a link to a website for your sub, please make sure it's current. If you change hosts, please email the new link to
infinitelybaffled at comcast dot net
___________________________________________________

Manifold Designs are on pages 1 and 2
Wall mounted speakers are on page 3
Unusual and Extreme Designs are on page 4
"Infamous" Designs are on page 5
Installs not discussed on the Cult forum 6
________________________________________________________________________________________

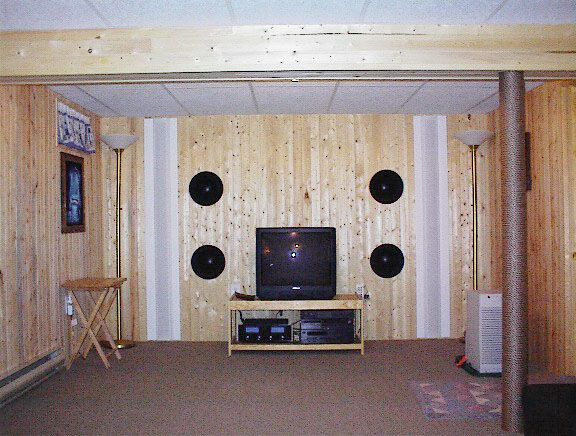

This is Derek's 4 AE-IB15" installation

Below is the backside of the wall where the woofers are installed.
 This is the storage space area shown in the floor plan

Derek has more pictures detailing the building of his HT in this LINK

________________________________________________________________________________________

This is Ed B's quad AE-IB15" line array. It's installed directly below his FPTV screen

________________________________________________________________________________________

Below is David K's  stage mounted IB sub. Each box each contains a pair of the AE-IB 15"s.

The boxes extend through the stage in his HT and open into a storage room

________________________________________________________________________________________

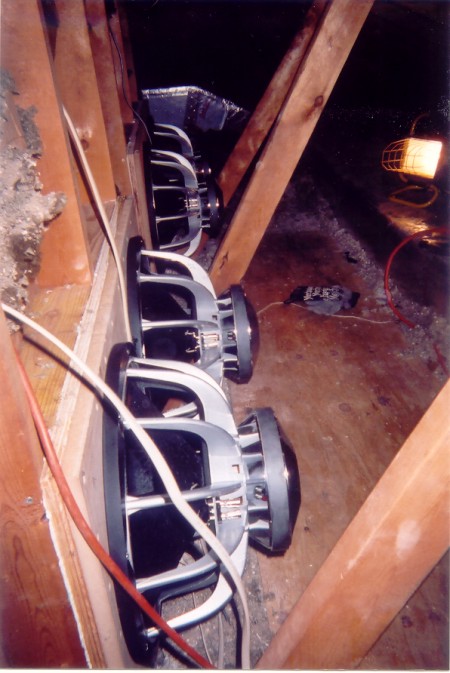

These are Carl P's wall mounted Ave 18"s. Below is a view of the back side

Below is a view of the front side

________________________________________________________________________________________

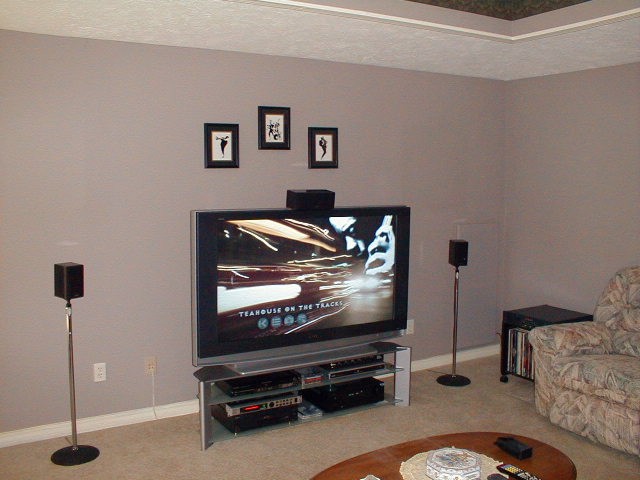

This is RAF's very stealthy dual Tempest IB, (hint) it's in the corner behind the right speaker

Below is a close up of the matching grill cloth

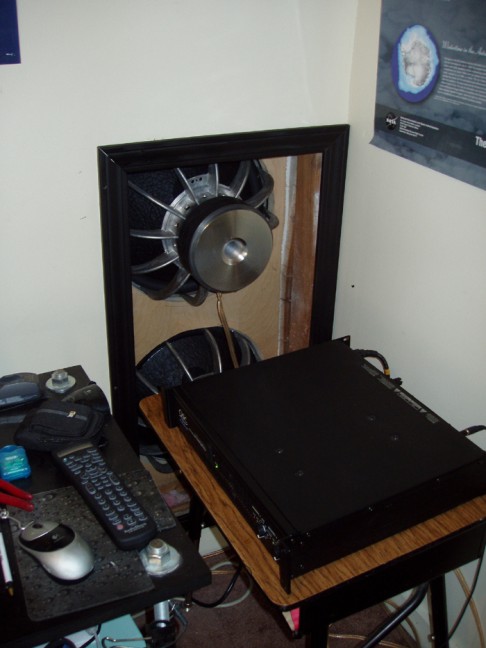

This is the backside of the install

Here's a LINK to his website with more pictures of his HT

________________________________________________________________________________________

These are Ron's Parts Express dual 15" DVC stairwell mounted IB.

HERE is the URL for his web page with a detailed description and additional pictures

Front side view

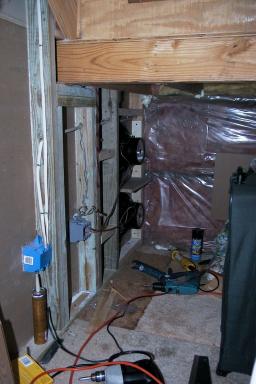

Backside view

______________________________________________________________________________

A dual 12" in-wall sub made by Robert George. The  drivers were recycled after upgrading a pair of original SVS tube subs. Robert later upgraded the divers again. This time using a pair of Adire Sadhara drivers. Unfortunately I don't have photos of those drivers.

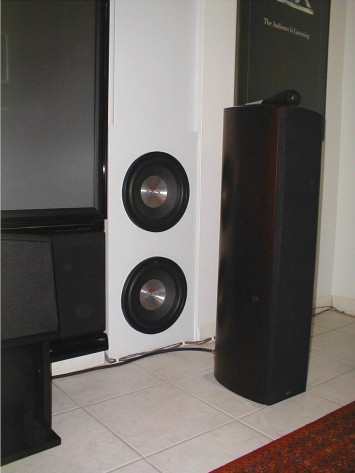

Front Detail

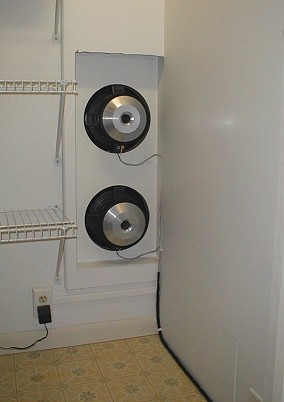

Rear Detail

_____________________________________________________________________________

htjolly's dual 12" Titanic wall mounted IB. Website with additional pics.

The back wall (shown below) is in the garage.

_____________________________________________________________________________

Mike Knapp's 4-Tempest wall mounted IB. Behind the drivers is a closet, the top of which is open to the attic. HERE is his website with additional details

__________________________________________________________________________________________

Below is Jack Sutton's 4 Titanic in-wall IB with B&G RD75's. HERE is the URL for his web page with a description

_______________________________________________________________________________

Below is James J's dual BluePrint 1804 install.

__________________________________________________________________________________________

Click HERE to go to page 4
